Beling BLF1165 Fuel Filter

Beling Code: BLF1165Fuel Filters

Fuel Filter

Request Quote Send Product List

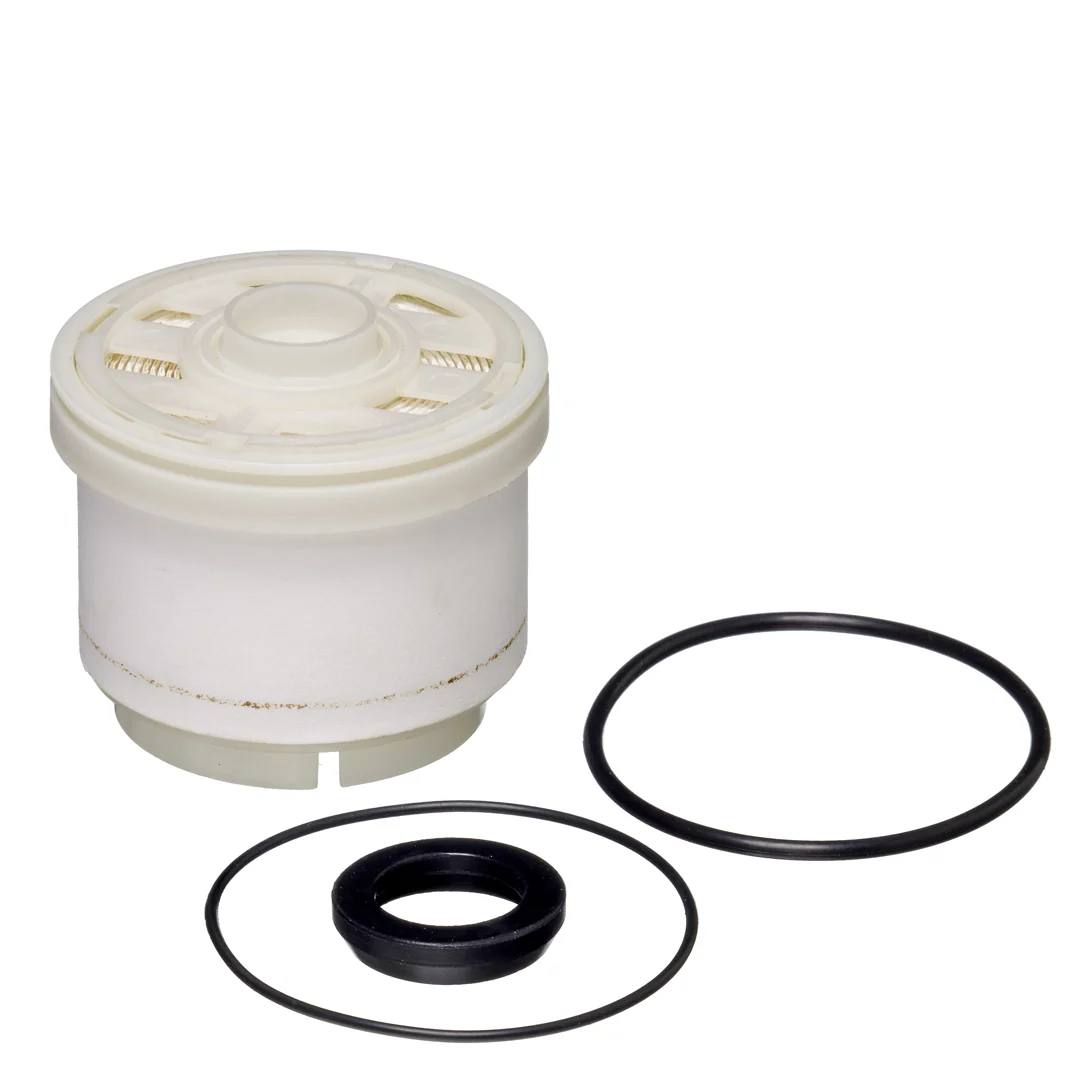

BLF1165 Fuel Filter

Verified product image

Product identity

Verified identity for product-list and sourcing review.

Fuel Filter

Beling Code

BLF1165

Category

Fuel Filters

Product Type

Fuel Filter

Technical specifications

Dimensions are controlled as separate, auditable records.

Only verified specifications are displayed as technical facts.

Outer Diameter
75 mm
Height
79 mm
Inner Diameter
31 mm
Inner Diameter 1
63 mm

OE reference

OE references are verified before publication.

Reference records are published only after brand, number and relationship review.

BrandReference numberRelationship
FIAT6000605426reference-only
FIAT6000605431reference-only
FIAT6000608218reference-only
ISUZU898 159 6930reference-only
MITSUBISHI1770A321reference-only
TOYOTA23300-0L031reference-only
TOYOTA23300-0L032reference-only
TOYOTA23300-87317reference-only
TOYOTA23390-0L010reference-only
TOYOTA23390-0L010-000reference-only
TOYOTA23390-0L011reference-only
TOYOTA23390-0L020reference-only
TOYOTA23390-0L030reference-only
TOYOTA23390-0L041reference-only
TOYOTA23390-YZZA2reference-only

Aftermarket cross reference

Aftermarket references stay evidence-led.

Reference records are published only after brand, number and relationship review.

BrandReference numberRelationship
A.L. FILTERALG-7800reference-only
ALCO FILTERMD-593reference-only
AMC FilterTF-1591reference-only
ASHIKA30-02-200reference-only
ASHIKA30-ECO039reference-only
BALDWINPF46088reference-only
BLUE PRINTADT 32381reference-only
BOSCH0 986 4B2 021reference-only
BOSCH0986AF6100reference-only
BOSCH0 986 AF6 289reference-only
BOSCHF 026 402 115reference-only
BOSCHN2115reference-only
CHAMPIONCFF100477reference-only
CHAMPIONL 477/606reference-only
CLEAN FILTERSMG 1667reference-only
COMLINECTY13045reference-only
CoopersFiaamFA6065ECOreference-only
DELPHIHDF657reference-only
DENSODDFF21910reference-only
DONALDSONP505973reference-only
Dr!ve+DP1110130177reference-only
DT Spare Parts14.23001reference-only
EUROREPAR1643626880reference-only
FEBI BILSTEIN184132reference-only
FIL FILTERMFE 1593reference-only
FILTROS TECFILPC949reference-only
FLEETGUARDFF5764reference-only
FRAMC-10353reference-only
FRAMC10353ECOreference-only
GIFFI 501reference-only
GUD FILTERSG 1142reference-only
HENGST FILTERE492KP D371reference-only
HERTH+BUSS JAKOPARTSJ1332095reference-only
HERTH+BUSS JAKOPARTSJ1335074reference-only
JAPANPARTSFC-200Sreference-only
JAPANPARTSFC-ECO039reference-only
JAPANPARTSJFC-200Sreference-only
LAUTRETTEELG 5378reference-only
MAGNETI MARELLI153071762332reference-only
MAGNETI MARELLI71762332reference-only
MAHLEKX 268reference-only
MAHLEKX 268 Dreference-only
MAHLEKX 268D ECOreference-only
MAHLEKX 422reference-only
MAHLEKX 586Dreference-only
MAHLEKX 612reference-only
MANN-FILTERPU 835 xreference-only
MANN-FILTERPU 835 xreference-only
MEAT & DORIA4863reference-only
MEYLE30143230018reference-only
MISFATM605reference-only
MOTAQUIPLVFF 736reference-only
MULLER FILTERFN1138reference-only
MULLER FILTERFN1508reference-only
NIPPARTSN1332096reference-only
PURFLUXC802reference-only
QUINTON HAZELLQFF0258reference-only
RYCOR2619Preference-only
SAKURA AutomotiveF-1111reference-only
SAKURA AutomotiveF-11111reference-only
SAKURA AutomotiveF-11112reference-only
SCT - MANNOLSC 7048reference-only
SCT - MANNOLSC 7048 Preference-only
SF FILTERSK 3132reference-only
SOFIMAS 6045 NEreference-only
TECNOCARN336reference-only
UFI26.045.00reference-only
UNIPARTGFE 5485reference-only
VAICOV70-0197reference-only
VALEO587898reference-only
VALEO587933reference-only
VICF-193reference-only
WESFILWCF31NMreference-only
WIX FILTERSWF10559Areference-only
WIX FILTERSWF8429reference-only

Vehicle application

Verified vehicle applications

Published make, model and year records reflect confirmed source data. Missing engine details are left blank rather than inferred.

MakeModelYears
FIATFULLBACK Pickup (502_, 503) 2.4 D (KTOT) [2016-]2016–
FIATFULLBACK Pickup (502, 503 ) 2.4 D 4x4 (KTOT) [2016-]2016–
FIATFULLBACK Pickup (502, 503)2.4 D 4x4 (KTOT) [2016-]2016–
HOLDENCOLORADO Platform/Chassis (RG) 2.4 D (U143AG) [2012-2013]2012–2013
ISUZUD-MAX II (TFR, TFS) 1.9 4x4 (TFS87J) [2015-]2015–
ISUZUD-MAX II (TFR, TFS) 1.9 Ddi (TFR87J) [2017-2022]2017–2022
ISUZUD-MAX II (TFR, TFS) 1.9 Ddi (TFR87J) [2015-]2015–
ISUZUD-MAX II (TFR, TFS) 1.9 Ddi 4x4 (TFS87J) [2017-2022]2017–2022
ISUZUD-MAX II (TFR, TFS) 2.5 CRDi (TFR86J) [2012-]2012–
ISUZUD-MAX II (TFR, TFS) 2.5 CRDi (TFR86J) [2012-2018]2012–2018
ISUZUD-MAX II (TFR, TFS) 2.5 CRDi 4x4 (TFS86J) [2012-2018]2012–2018
ISUZUD-MAX II (TFR, TFS) 2.5 CRDi 4x4 (TFS86J) [2012-2019]2012–2019
ISUZUD-MAX II Platform/Chassis (TFR, TFS) 2.5 CRDi [2012-]2012–
ISUZUD-MAX Il Platform/Chassis (TFR, TFS) 2.5 CRDi [2012-]2012–
ISUZUD-MAX Il Platform/Chassis (TFR, TFS) 2.5 CRDi 4WD [2012-]2012–
ISUZUD-MAX III (TFR, TFS) 1.9 DDI (TFR87) [2019-]2019–
ISUZUD-MAX III (TFR, TFS) 1.9 DDI (TFR87J, TFR87) [2019-]2019–
ISUZUD-MAX III (TFR, TFS) 1.9 DDI 4x4 (TFS87) [2019-]2019–
ISUZUD-MAX III (TFR, TFS) 1.9 DDI 4x4 (TFS87J) [2019-]2019–
LEXUSIS II (_E2_) 200d (ALE20_, ALE20R) [2010-2012]2010–2012
LEXUSIS II (_E2_) 220d (ALE20) [2005-2012]2005–2012
MAZDABT-50 III 1.9 TDi—–
MAZDABT-50 IIl 1.9 TDi 4x4—–
MAZDABT-50 III Pickup 1.9 4x2—–
MAZDABT-50 IIl Pickup 1.9 TDi 4x4—–
MITSUBISHIL200/ TRITON (KA_T, KB_T) 3.2 DI-D 4WD (KB8T) [2007-2015]2007–2015
MITSUBISHIL200/ TRITON (KJ, KK, KL) 2.2 DI-D [2019-]2019–
MITSUBISHIL200/ TRITON (KJ, KK, KL ) 2.2 DI-D 4WD [2019]2019–
MITSUBISHIL200/ TRITON (KJ, KK, KL) 2.4 DI-D [2015-]2015–
MITSUBISHIL200/ TRITON (KJ, KK, KL) 2.4 DI-D (KJOT) [2015-]2015–
MITSUBISHIL200/TRITON (KJ, KK, KL)2.4 DI-D (KK1T) [2015-]2015–
MITSUBISHIL200/ TRITON (KJ, KK, KL) 2.4 DI-D 4WD [2015-]2015–
MITSUBISHIL200 / TRITON (KJ_, KK_, KL_) 2.4 DI-D 4WD (KJ0T) [2015-]2015–
MITSUBISHIL200 / TRITON (KJ_, KK_, KL_) 2.4 DI-D 4WD (KL1T, KL2T) [2015-]2015–
MITSUBISHIL200 / TRITON (KJ_, KK_, KL_) 2.4 DI-D 4WD (KL1T) [2014-]2014–
MITSUBISHIL200 Platform/Chassis (MQ) 2.4 D (KK1T) [2015-]2015–
MITSUBISHIL200 Platform/Chassis (MQ) 2.4 D 4WD (KL1T) [2015-]2015–
MITSUBISHIPAJERO SPORT I (K7_, K9_) 3.2 TDi (K90W) [1998-]1998–
TOYOTAFORTUNER (_N5_, _N6_) 2.5 D-4D (KUN60) [2009-2015]2009–2015
TOYOTAFORTUNER (_N5_, _N6_) 2.5 D-4D 4WD (RZN215, KUN50) [2011-2015]2011–2015
TOYOTAFORTUNER (_N5_, _N6_) [2004-2015]2004–2015
TOYOTAHILUX VII Pickup (_N1_, _N2_, _N3_) [2005-2015]2005–2015
TOYOTAHILUX VII Platform/Chassis (_N1_, _N2_) [2005-]2005–
TOYOTAHILUX VIII Pickup (_N1_) 2.5 D (KUN135) [2015-]2015–

Quality evidence

Product-specific evidence is kept separate from company-level proof.

Only records directly approved for this SKU can appear here.

Verification in progress

No BLF092-specific inspection, testing, certificate or evidence record has been approved. Contact engineering to request the appropriate documentation.

Request quality documentation

Private label support

Align product, packaging and market requirements before quotation.

Private-label packaging, MOQ and sample support for BLF1165 require product and market review. Share your target market and packaging requirement with the RFQ.

Discuss private label

Documents

Download only approved product documentation.

Verification in progress

No approved BLF092 datasheet, technical drawing, catalog or certificate is available for public download.

Request documentation

Product FAQ

Questions are answered only with approved product data.

Verification in progress

No BLF1165 product-specific FAQ has been approved. Send your OE number, vehicle application or technical question for engineering review.

Ask a product question

Related products

Build your oil-filter range with verified SKU data.

Related Oil Filter SKU records are not yet approved for display. Send a product list to build a verified range review.

RFQ

Need a verified review for BLF1165?

Include your OE number, target market, quantity and packaging requirement so our team can review the right product data.
