Beling BLF244 Air Filter

Beling Code: BLF244Air Filters

Air Filter

Request Quote Send Product List

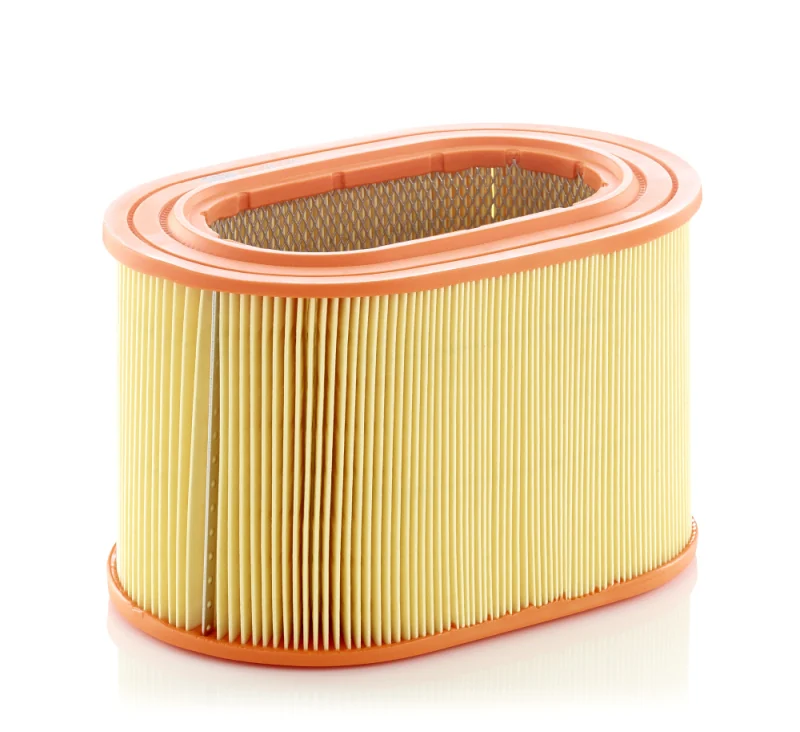

BLF244 Air Filter

Verified product image

Product identity

Verified identity for product-list and sourcing review.

Air Filter

Beling Code

BLF244

Category

Air Filters

Product Type

Air Filter

Technical specifications

Dimensions are controlled as separate, auditable records.

Only verified specifications are displayed as technical facts.

Outer Diameter
242 mm
Height
147 mm
Inner Diameter
164 mm
Inner Diameter 1
164 mm

OE reference

OE references are verified before publication.

Reference records are published only after brand, number and relationship review.

BrandReference numberRelationship
CHRYSLERMD603384reference-only
MITSUBISHIMD 603384reference-only
MITSUBISHIMZ 311785reference-only
MITSUBISHIXD 603384reference-only

Aftermarket cross reference

Aftermarket references stay evidence-led.

Reference records are published only after brand, number and relationship review.

BrandReference numberRelationship
ACDelcoPC 3052 Ereference-only
ALCO FILTERMD-148reference-only
AMC FilterMA-472reference-only
ASHIKA20-05-508reference-only
BLUE PRINTADC 42210reference-only
BLUE PRINTADC 42210Sreference-only
BOSCH1 987 429 109reference-only
BOSCHF 026 400 557reference-only
BOSCHS9109reference-only
CHAMPAF 4368reference-only
CHAMPAO 24reference-only
CHAMPIONCAF100419Creference-only
CHAMPIONV 419reference-only
CHAMPIONV 419/606reference-only
CLEAN FILTERSMA 601reference-only
COMLINECMB12328reference-only
COOPERSAG 926reference-only
CoopersFiaamFL6744reference-only
CROSLAND FILTERS9114reference-only
DELPHIAF0453reference-only
Dr!ve+DP1110100238reference-only
EUROREPAR1616248180reference-only
FILTRONAE 333/1reference-only
FLEETGUARDAF4622reference-only
FRAMCA4369reference-only
GIFGA 751reference-only
GUD FILTERSADG 978reference-only
HERTH+BUSS JAKOPARTSJ1325008reference-only
HOFFER8200999reference-only
JAPANPARTSFA-508reference-only
JAPANPARTSFA-508Sreference-only
JAPANPARTSFA-595reference-only
JAPANPARTSJFA-508reference-only
JAPANPARTSJFA-508Sreference-only
JAPANPARTSJFA-595reference-only
LAUTRETTEEL 3560reference-only
LUBERFINERAF 4368reference-only
MAHLELX 669reference-only
MANN-FILTERC 24 135reference-only
MEAT & DORIA16999reference-only
MEYLE32-12 321 0006reference-only
MISFATR071reference-only
MISFATR1163reference-only
MULLER FILTERPA899reference-only
NIPPARTSJ1325008reference-only
P.B.R.AI-3175reference-only
PURFLUXA306reference-only
PUROLATORA 43583reference-only
QUINTON HAZELLQFA0080reference-only
QUINTON HAZELLQFA0803reference-only
SCT - MANNOLSB 924reference-only
SOFIMAS 9980 Areference-only
SOFIMAS 9981 Areference-only
TECNECO FILTERSAR 899-OVreference-only
TECNOCARA899reference-only
TRP1513755reference-only
UFI27.071.00reference-only
UFI27.071.01reference-only
UNICO FILTERAE 24145reference-only
VICA-328reference-only
WESFILWA1124reference-only
WIX FILTERSWA6019reference-only

Vehicle application

Verified vehicle applications

Published make, model and year records reflect confirmed source data. Missing engine details are left blank rather than inferred.

MakeModelYears
MITSUBISHIGALANT IV (A16_) [1980-1984]1980–1984
MITSUBISHIGALANT IV Station Wagon (A16_V) [1980-1984]1980–1984
MITSUBISHIPAJERO I (L04_G, L14_G) [1982-1991]1982–1991
MITSUBISHIPAJERO I Canvas Top (L04_G) [1982-1990]1982–1990
MITSUBISHIPAJERO II (V3_W, V2_W, V4_W, V5_W) [1990-2001]1990–2001

Quality evidence

Product-specific evidence is kept separate from company-level proof.

Only records directly approved for this SKU can appear here.

Verification in progress

No BLF092-specific inspection, testing, certificate or evidence record has been approved. Contact engineering to request the appropriate documentation.

Request quality documentation

Private label support

Align product, packaging and market requirements before quotation.

Private-label packaging, MOQ and sample support for BLF244 require product and market review. Share your target market and packaging requirement with the RFQ.

Discuss private label

Documents

Download only approved product documentation.

Verification in progress

No approved BLF092 datasheet, technical drawing, catalog or certificate is available for public download.

Request documentation

Product FAQ

Questions are answered only with approved product data.

Verification in progress

No BLF244 product-specific FAQ has been approved. Send your OE number, vehicle application or technical question for engineering review.
